Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Lamella tube settler media is also called Honeycomb inclined tube packing or hexagonal inclined tube settler, which is a kind of settling tank packing designed and developed on the basis of the theory of "shallow sedimentation". The tube settler packing has large wet cycle, small hydraulic radius, good laminar flow state during operation so that the particle settling is not disturbed by turbulence, which can accelerate the separation of particles from water and shorten the precipitation distance of particles.
Using the PP/PVC/FRP/SS304 as material, the tubes are made by hot pressing and cut into accurate size.
The tube settler is normally used for water supply purification and waste water treatment for the waste water from: chemical plant sewage, domestic sewage plant, coal mine and coal washing plant, power plant concentration pool, pharmaceutical plants, paper mill as well as sand and rapid precipitation, oil separation etc.
It is suitable for both new projects and reconstruction of existing old ponds, and can achieve good economic benefits.
1. Process efficiency----From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope
2. Flexible dimensions---It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling----Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system-----With stainless steel and specially shaped glass fiber reinforced plastic beams minimizing turbulence and sludge deposit.
5. Strong and high quality material----We provides high stability of the modules for easy maintenance - PP material approved for high standards of potable water applications
PP PVC lamella clarifier tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.
The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settlers aids handling during installation and any subsequent maintenance.
PP PVC lamella clarifier tube settler media for trickling filter for sewage water treatment design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
PP PVC lamella clarifier tube settler media for sewage water treatment offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
|
Material |
Dimension (mm) |
Thickness (mm) |
Quantity (pc/m²) |
Specific Surface Area (m²/m³) |
Slope Angel |
Width (m) |
Length (m) |
|
PP |
D35 |
0.35/0.4/ 0.5/0.6/ 0.7/0.8 |
40 |
169.4159 |
60° |
1 |
0.5-1.5 |
|
D50 |
0.4/0.45/ 0.5/0.6/0.7/0.8/0.9/1.0 |
30 |
119.0155 |
||||
|
D80 |
0.6/0.7/0.8/0.9/1.0/1.1/1.2 |
20 |
99.3071 |
||||
|
Material:PVC/FRP/SS304 material also optional. |
|||||||

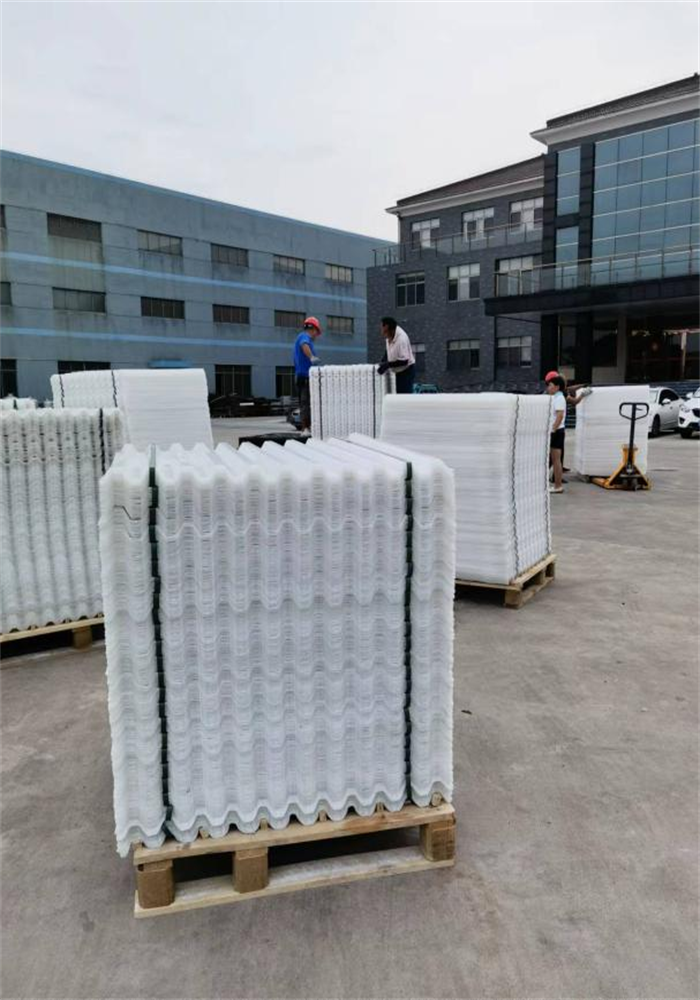

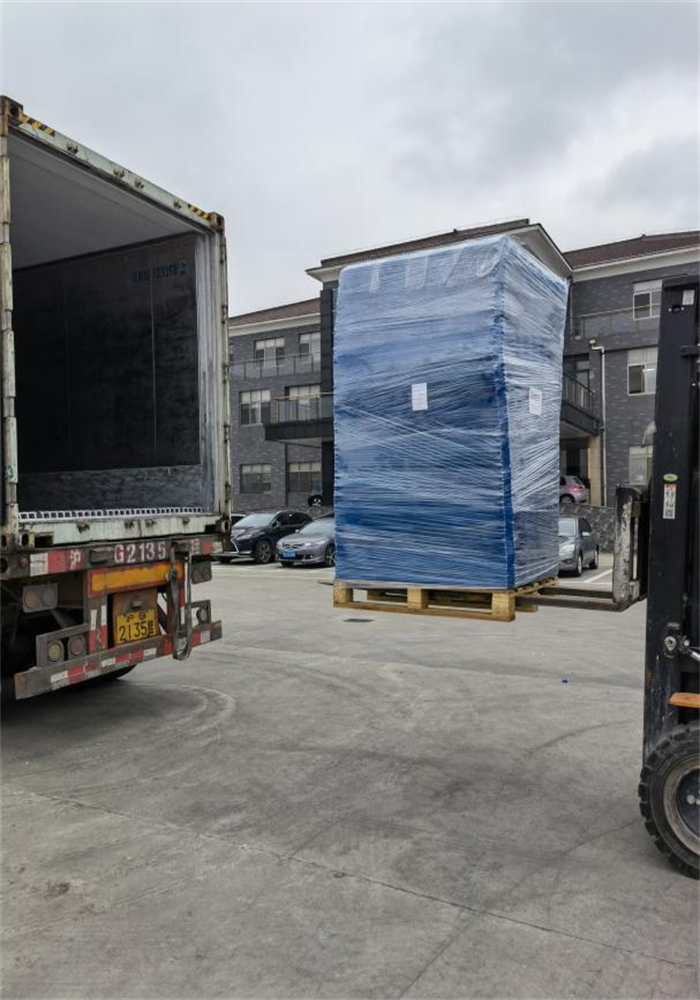

Shipment photo
Site photo
